Film & Appearance Inspection
Soft-Pack Color-Film Quality Inspection (WYTCM1010)
Color-film quality inspection with 2 high-speed color cameras and LED illumination that detects and rejects color-film misalignment, skew, missing film and bottom label paper defects online, safeguarding the packaging aesthetics and anti-counterfeiting performance of color-film cigarettes.
Specifications
- Cameras
- 2 high-speed color cameras
- Light source
- LED illumination
- Inspection coverage
- color film position, skew and presence; bottom film and bottom label paper
Overview
As cigarette manufacturers demand ever-better packaging aesthetics and anti-counterfeiting performance, color film is gradually replacing ordinary transparent film as the outer packaging material, and major Chinese cigarette factories have launched color-film cigarettes. During production, mechanical deviations and other factors can prevent the printed pattern on color film from wrapping the pack in the correct position, causing defects such as film misalignment and skew that seriously affect packaging quality.

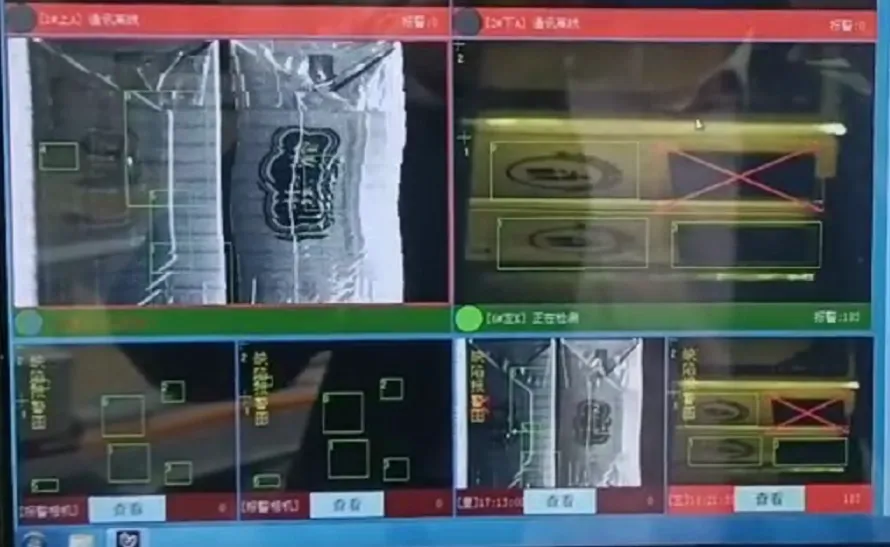

We successfully developed the soft-pack color-film quality inspection:2 high-speed color cameras with LED illumination, using mature high-speed image processing technology and advanced software algorithms, comprehensively detect color-film misalignment, skew and other defects during production and reject defective packs online, achieving quality control of color-film packaging and safeguarding product quality.
Main Functions
The system accurately detects and rejects the following color-film defects.
Color-film misalignment
Missing color film
Skewed color film
Skewed bottom film
Missing bottom film
Loose bottom film
Missing bottom label paper
Loose bottom label paper
Request a quote or the full datasheet for your configuration - send an inquiry with your packaging machine model and product format, and our engineers will propose the matching inspection setup.
