Film & Appearance Inspection
Soft-Pack Loose-Pack Vision Inspection System (WYTSB3000)
Vision inspection system with 2 high-speed scanning cameras, line-shaped laser source and LED illumination that detects and rejects soft-pack loose-film, loose-label and wrinkle defects online, in mature use on G.D X1/X2/2000/X500/C600, FOCKE350/700, ZB45 and ZB48 packaging machines.
Specifications
- Cameras
- 2 high-speed scanning cameras
- Light source
- Line-shaped laser source plus LED illumination
- Reject interface
- GDX1/GDX2 manual reject line (line 535)
- Compatible machines
- G.D X1/X2/2000/X500/C600, FOCKE350/700, ZB45, ZB48
Overview
During production, after soft packs are wrapped in film and pass through the forming wheel, loose-film-pack defects often occur for a variety of reasons. This defect has long been a difficult quality problem for cigarette manufacturers. At high machine speeds, operators can hardly detect and control loose-pack defects, and defective packs frequently reach the market, damaging product reputation.
Existing mechanical and photoelectric loose-pack detectors on the market suffer from frequent false rejects, inaccuracy and insufficient detection capability, and cannot effectively solve this defect. Based on the characteristics of loose-pack defects in production, we developed, with independent intellectual property, a soft-pack loose-pack vision inspection device using image processing technology.
Equipped with2 high-speed scanning cameras, a line-shaped laser source and LED illumination, the device effectively performs online quality control of soft-pack film loose-pack defects, delivering significant practical value.
The system is already in mature use at numerous cigarette factories nationwide, installed on mainstream packaging machine models including G.D X1, X2, 2000, X500 and C600, FOCKE350 and 700, ZB45 and ZB48.
How It Works

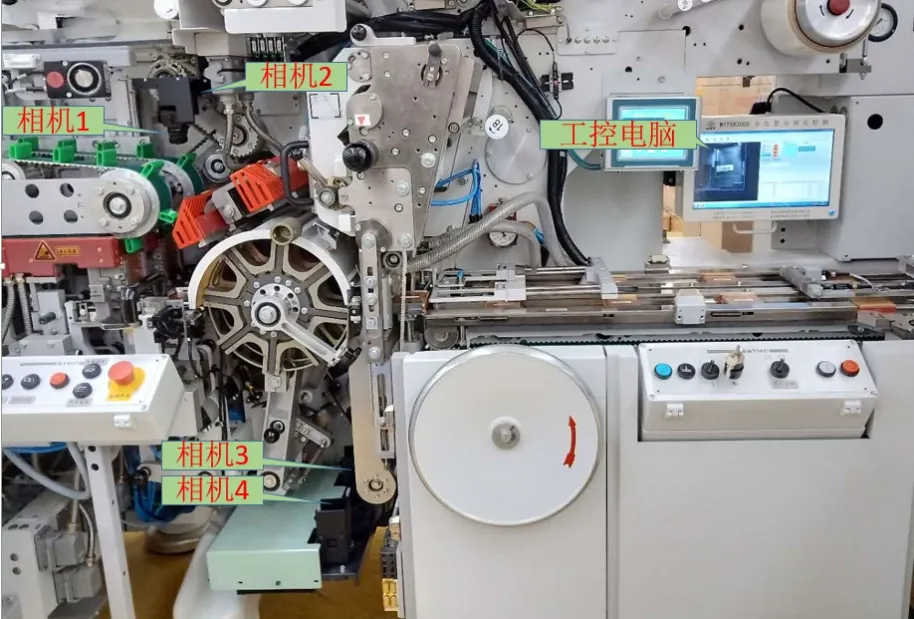

When a pack enters the camera's field of view, the LED illumination lights the pack, the laser source scans the pack surface at extreme speed, and the high-speed scanning cameras capture images. A fiber-optic signal acquisition system detects pack arrival and signals the main control system. The captured image signals travel through dedicated data lines and an image capture card to the control system, which runs proprietary image processing software for image analysis, data computation, processing and recognition.

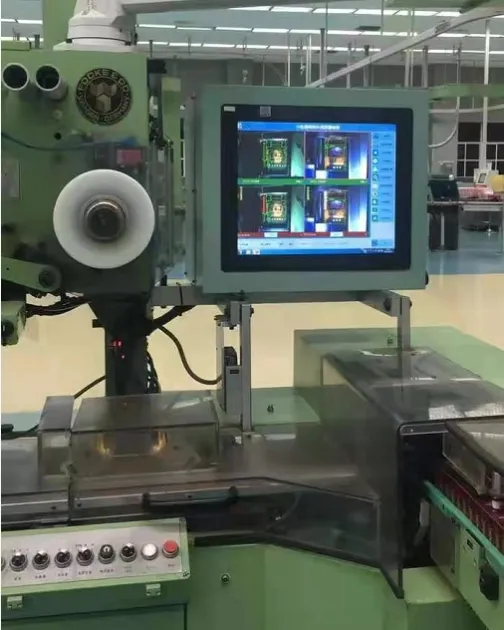

If a defective pack is identified, the control system sends a reject signal to the GDX1 or GDX2 manual reject line, ejecting the defective pack from the line while normal packs are unaffected. The control system also sends image data to the industrial PC so operators can configure and query the system in real time, and a human-machine interface makes it simple to adjust image-processing algorithm parameters.
Main Inspection Capabilities
The system inspects and rejects the following defect types online.
Loose, bubbled or missing soft-pack label paper
Loose, bubbled or missing soft-pack film
Soft-pack film wrinkles
Soft-pack label paper wrinkles
Upside-down packs
Presence of the tear tape
Presence, skew and exposed edges of the seal label
Compatible Machines
G.D X1, X2, 2000, X500 and C600; FOCKE350 and FOCKE700; ZB45 and ZB48.
Send an inquiry with your machine model and line speed, and our engineers will confirm the installation position and inspection configuration for your line.
